Hydraulic Return Filter Element 31N4-01460
Essential Filtration for Hyundai Hydraulic Systems

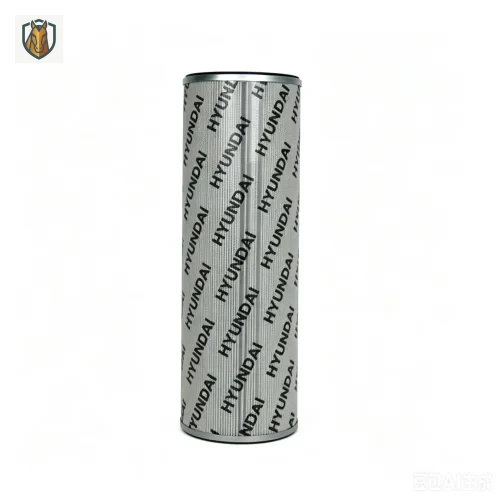

The Hyundai 31N4-01460 Hydraulic Return Filter is a vital component in the filtration system of Hyundai excavators. Positioned within the hydraulic tank return line, this filter serves as the final cleanup barrier, capturing metallic debris, rubber fragments, and silt before the hydraulic oil enters the reservoir.
1. Technical Specifications
| Parameter | Detail |
|---|---|
| Part Number | 31N4-01460 |
| Category | Hydraulic Return Filter |
| Application | Tank-internal return line |
| Filtration Media | High-capacity fiber media |
2. Machine Compatibility
Widely utilized across Hyundai's 7-series and 9-series excavator fleets:
Compact & Mid-Size: R55-7, R60-7, R80-7, R110-7, R140LC-7, R150-7.
Standard Excavators: R215-7, R225-7, and various other mid-size models.
3. Maintenance Protocols
Service Interval: Recommended replacement every 500 to 1,000 operating hours (more frequent in dusty/mining conditions).
Diagnostic Signs: Excessive metal shards in the filter media indicate premature wear of hydraulic cylinders, pumps, or motors.
Installation Tips: Depressurize the system before opening the housing. Always replace housing seals/O-rings to prevent leakage. Run at low idle after installation to bleed air.
4. Technical Support & Logistics
Supplier: Xuzhou Sinoswift Import & Export Co., Ltd.
WhatsApp: +86 13701956981
Email: [email protected]
Technical Note: Regular replacement of the 31N4-01460 is one of the most cost-effective ways to extend the life of your hydraulic pumps. Are you currently performing a full hydraulic system service, or do you need assistance with other filter elements for your Hyundai excavator fleet?
