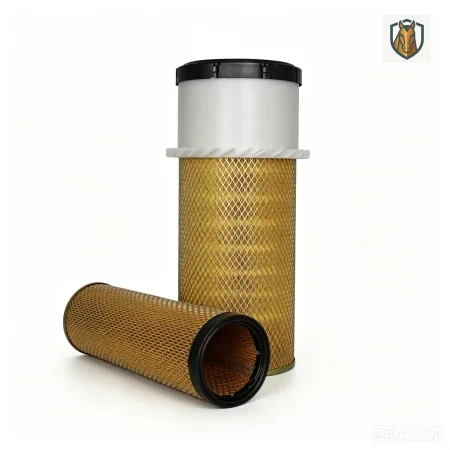

Engine Air Filter Outer Element 11N6-24520
Primary Intake Protection for Mid-Sized Excavators
The Hyundai 11N6-24520 is a high-capacity outer air filter element, serving as the primary barrier against airborne contaminants for Hyundai mid-sized excavators. Designed to handle high airflow volumes, this filter effectively traps dust and particulate matter, ensuring that your engine receives clean air for optimal combustion efficiency.
1. Technical Specifications
| Parameter | Detail |
|---|---|
| Part Number | 11N6-24520 |
| Component Type | Engine Air Filter (Outer Element) |
| Primary Function | Primary stage of intake filtration, capturing large debris and dust |
| Compatibility | Extensive usage across Hyundai 7-series and 9-series mid-range |
2. Machine Compatibility
Engineered for reliable performance in medium-tonnage applications:
Hyundai Models: R215-7, R215-7C, R215-9C, R225-7, R225LC-7, R245-7, R265LC-7, and other 7/9-series variants.
System Synergy: Designed to work in conjunction with the inner safety filter (commonly 11N6-27030). Replacing both simultaneously is recommended to maintain optimal airflow.
3. Maintenance & Installation Protocols
Service Interval: Replace every 500 to 1,000 operating hours. Service frequency should be increased in extreme conditions such as high-dust construction sites, mining, or sandy terrains.
Diagnostic Indicators: Replace immediately if the air filter restriction indicator on the dashboard activates, or if you observe decreased engine performance and increased fuel consumption.
Installation Tip: Clean the air filter housing before installing the new element to ensure a perfect seal. Verify that the housing cover is properly locked to prevent air bypass.
4. Technical Support & Logistics
Supplier: Xuzhou Sinoswift Import & Export Co., Ltd.
WhatsApp: +86 13701956981
Email: [email protected]
Technical Note: Using a clean outer filter is vital for preserving the turbocharger and engine valves from abrasive dust particles.
