Main Wiring Harness 21N1-10013

Central Nervous System for R80-7 Excavator Reliability

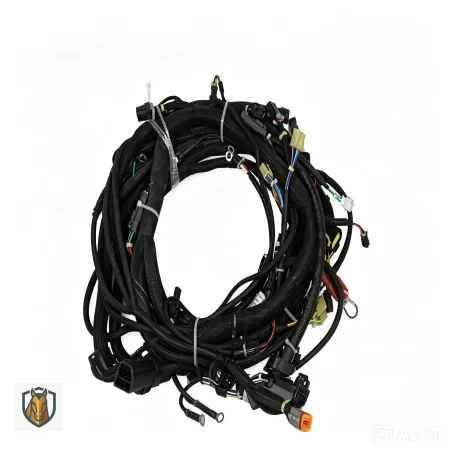

The Hyundai 21N1-10013 Main Wiring Harness is the central nervous system of your R80-7 excavator. Engineered to meet the high standards of heavy machinery, this harness provides the vital physical connections between the Electronic Control Unit (ECU), engine sensors, hydraulic actuators, cabin instruments, and power distribution modules. Built with high-grade, heat-resistant insulation and precision-fit connectors, it ensures that electrical signals remain clean and stable even amidst the high vibration and harsh environmental conditions characteristic of intensive construction sites.

1. Technical Specifications

Parameter	Detail
Part Number	21N1-10013
Component Type	Main Wiring Harness Assembly
Primary Function	Integrates the machine’s entire electrical circuit; transfers power and data signals between the ECU and all peripheral components
Compatibility	Primarily R80-7; with potential compatibility for R55-7, R60-7, and R110-7 series (please verify connector pinouts for cross-model installation)

2. The Role of a Central Harness

A main wiring harness is the backbone of machine reliability. When this component fails—due to long-term wear, insulation breakdown, or connector corrosion—it often manifests as "ghost" electrical problems, where multiple systems appear to malfunction simultaneously.

3. Installation and Diagnostic Protocols

Diagnostic Indicators: If the machine displays erratic sensor readings, fails to start, or has multiple electrical components (lights, wipers, dash) failing simultaneously, the integrity of the main harness should be inspected for shorts or open circuits.
Installation Advice: Replacing a main harness is a precision task. It is recommended to document the original routing path before removal. Ensure all connectors are "clicked" into a fully locked position and that the harness is secured with all original clips to prevent mechanical chafing against the frame. Avoid over-bending, which can cause micro-fractures in the internal copper wiring.
Maintenance: While not a traditional "wear" item, inspect harness contact points periodically for signs of oxidation or moisture ingress, especially in the engine bay and near the cabin entry points.
