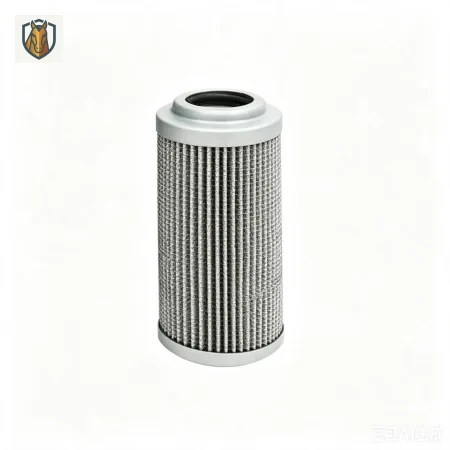

Excavator Pilot Filter Element (15T - 69T Series)
High-Performance Filtration for Precision Pilot Control Systems
This high-performance pilot filter element is engineered for the XCMG XE-series excavators, covering the mid-to-ultra-large tonnage range from 15 to 69 tons. As a critical component within the pilot hydraulic circuit, it is responsible for filtering out microscopic contaminants from the pilot control fluid. By ensuring the absolute purity of the pilot oil, this filter prevents spool binding in the main control valve and maintains the joystick's precise, factory-standard response. It is a fundamental maintenance requirement for high-tonnage machines to ensure operational safety and avoid unnecessary downtime during intensive, high-pressure heavy-duty cycles.
1. Technical Specifications
| Parameter | Detail |
|---|---|
| Component Type | Pilot Hydraulic Filter Element |
| Primary Function | Removes fine particulate matter from the pilot oil circuit to maintain control sensitivity and valve performance |
| Compatibility (15T - 69T) | XE150WD, XE155WD, XE400DK, XE490D, XE490DK, XE500HB, XE520DK, XE550DK, XE600DK, XE690DK |
2. Operational Importance
The pilot circuit serves as the control brain of the excavator. Because pilot components operate with extremely tight tolerances, even minor sediment accumulation can result in jerky joystick inputs, delayed responses, or internal spool leakage. Proactive replacement of this pilot filter is the most cost-effective way to preserve the operational feel of your XCMG excavator and prevent secondary, expensive damage to the main control valve assembly.
3. Maintenance Protocols
Replacement Cycle: Recommended every 500 – 1,000 operating hours. In high-duty mining, quarrying, or demolition environments, more frequent inspection is strongly advised to prevent pressure drops.
Diagnostic Indicators: If the operator reports sluggish joystick response or sponginess in movement, inspect the pilot filter immediately for blockage or media collapse.
Installation Advice: Ensure the filter housing area is thoroughly cleaned before removal to prevent contaminants from entering the pilot line. Always verify the O-ring seal is in good condition; a poor seal can lead to air ingress and hydraulic system failure.
4. Technical Support & Logistics
Supplier: Xuzhou Sinoswift Import & Export Co., Ltd.
WhatsApp: +86 13701956981
Email: [email protected]
