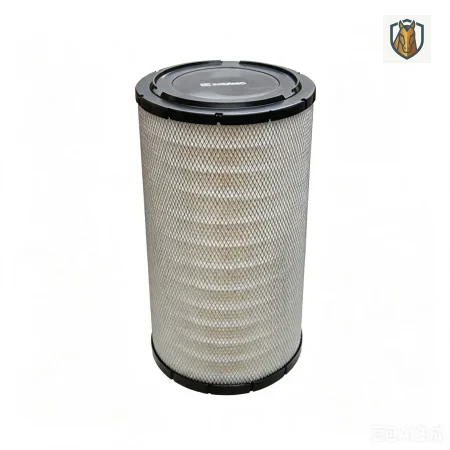

Excavator Outer Air Filter Element (20T - 31T Series)
High-Capacity Primary Filtration for Engine Air Intake
The high-capacity primary (outer) air filter element is the first line of defense for the engine air intake system of XCMG XE-series excavators in the 20T to 31T range. Engineered to handle large volumes of environmental dust, heavy sand, and debris commonly found in construction and mining sites, this filter ensures that the combustion air is effectively cleaned before reaching the secondary (inner) filter. Maintaining a clean primary filter is essential for achieving optimal engine combustion, preventing air intake restriction, and maximizing overall fuel efficiency.
1. Technical Specifications
| Parameter | Detail |
|---|---|
| Component Type | Primary (Outer) Engine Air Filter Element |
| Primary Function | Heavy-duty filtration of environmental dust and debris; protects the engine from large contaminants |
| Compatibility (20T - 31T) | XE200D, XE200DA, XE205D, XE205DA, XE210WD, XE215D, XE215DA, XE245DK, XE305D, XE310DA |
2. Operational Importance
The primary air filter is designed to trap the majority of airborne particles. When this filter becomes clogged, it creates a vacuum in the air intake system, causing the engine to work harder to pull in air, which leads to increased fuel consumption, reduced power output, and potential black smoke in the exhaust. Replacing this element regularly not only protects the engine internals but also ensures the machine maintains its rated operating performance and economy.
3. Maintenance Protocols
Replacement Cycle: Recommended every 500 – 1,000 operating hours, or sooner if operating in extremely dusty or harsh environments. Always check the machine's air restriction indicator (if equipped) to monitor filter status.
Maintenance Tips: Clean the outer air filter housing cover and the area around the inlet thoroughly before opening to prevent debris from entering the housing. Inspect the filter media for signs of water damage or oil mist. If damage is found, inspect the intake manifold for leaks. Do not attempt to use compressed air to blow out the filter element repeatedly, as this can degrade the filter paper fibers and compromise filtration efficiency; replacement is always the preferred maintenance practice.
4. Technical Support & Logistics
Supplier: Xuzhou Sinoswift Import & Export Co., Ltd.
WhatsApp: +86 13701956981
Email: [email protected]
