Premium Heavy‑Duty Common Rail Pressure Relief Valve — Fuel Rail Overpressure Protection Solution

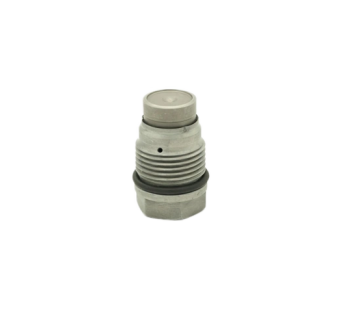

Our Premium Heavy‑Duty Common Rail Pressure Relief Valve (Part Number: 20793590 / VOE 20793590), also structurally defined as the Fuel Rail Safety Limiter Valve or Overpressure Protection Valve, is a critical high‑precision mechanical safeguard for common rail diesel engines. Threaded directly onto the end of the high‑pressure fuel rail assembly, this valve acts as a hydraulic safety fuse. Its core function is to monitor and protect the expensive fuel injection loop from destructive pressure spikes. If the high‑pressure pump spikes fuel pressure beyond safe limits due to a sticking Suction Control Valve (SCV) or electrical control glitch, this valve instantly cracks open, venting excess fuel back into the low‑pressure return line. By maintaining fuel rail structural equilibrium, it prevents cracked fuel rails, blown lines, and catastrophic injector tip blowouts.

Core Technical Advantages

• Ultra‑Hard Tungsten Carbide Valve Core: The internal sealing piston and valve seat are machined from premium tungsten carbide or treated micro‑alloys. This delivers incredible resistance to high‑velocity fuel erosion, fuel cavitation wear, and micro‑particle scoring.

• Factory‑Calibrated Precision Spring Stack: Outfitted with a premium heavy‑gauge internal spring system designed to stay closed under normal high‑pressure cycles, cracking open only at exact factory‑designated overpressure thresholds.

• Precision‑Cut M18 Heavy Mounting Threads: Machined to exact metric thread tolerances to guarantee a flush, high‑torque seat that prevents high‑pressure diesel weeping under continuous operation.

• Instant Fuel Pressure Stabilization: Restores exact pressure boundary retention within the fuel rail, eliminating fuel pressure fluctuations, engine hunting, and rail pressure control faults.

Technical Specifications

Master Application Fleet Guide

This high‑pressure fuel rail relief valve features extensive multi‑generation compatibility, serving as a critical fuel safety layout across VOLVO’s classic B‑series mechanical‑electronic crossovers, robust D‑series common rails, and modern E‑series infrastructure crawler fleets:

VOLVO 20‑Ton Class Core Infrastructure Workhorses

• Classic Fleet Standards: EC210B, EC210B Prime (Equipped with updated common rail configurations operating in demanding utility digging and trenching cycles).

• Modern Generation Fleets: EC200B, EC200D, EC210D, EC220D, EC220E (High‑efficiency common‑rail platforms reliant on rock‑steady rail pressure regulation to maintain emission standards).

VOLVO 24‑to‑30 Ton Heavy Earthmoving Fleets

• High‑Volume Production Frameworks: EC240B, EC250D, EC290B, EC300D (The backbone earthmoving and quarry configurations operating under continuous high‑load cycles where stable fuel delivery is mandatory to maintain peak horsepower).

Critical B2B Procurement Advice & Maintenance Guidelines

B2B Procurement Strategy for Parts Managers

The High‑Turnover Fuel System Protection Component: Common rail relief valves are high‑precision mechanical items. Poor fuel filtration, water contamination, or high runtime hours cause the internal micro‑seat to wear down or stay permanently cracked open (limp mode). Because a leaking relief valve stops the engine from building pressure and cripples a 20‑ton excavator, international parts distributors should always carry the 20793590 valve in wholesale stocking tiers to fulfill urgent repair workshop demands.

The Complete "Fuel System Fix" Cross‑Sell Bundle: When wholesale buyers place orders for this relief valve, it means their common rail loop has faced pressure instability or dirt contamination. Parts managers should always cross‑sell the matching primary fuel water separator (21408351) and secondary high‑precision fuel filter (21492771). Forcing a new relief valve to process contaminated fuel guarantees early seat scoring and repeat product failure claims.

Common Field Failure Symptoms of a Leaking or Blown Relief Valve

• The "Limp Mode" Sudden Power Loss & RPM Caps: If the valve undergoes internal structural fatigue or spring collapse, it opens prematurely at normal operating pressures. This drops rail pressure instantly, forcing the V‑ECU to trigger a "Limp Mode" code, which drastically limits engine RPMs and halts work.

• Hard Engine Cranking or Failure to Start: When a relief valve fails to seal tightly, fuel constantly bleeds back into the return line during startup. The high‑pressure pump cannot build the minimum cranking pressure (typically around 25‑30 MPa) inside the rail, causing very long cranking times or a complete "No Start" condition.

• Persistent Fuel Rail Pressure Error Fault Codes: The excavator's dashboard screen will display recurring active fault codes regarding fuel rail pressure deviations or fuel leakage in the high‑pressure system, indicating that fuel volume is continuously bypassing back to the tank.

Global Brand Cross‑Reference Matrix

All manufacturer names, engine classifications, equipment model designations and factory reference numbers are specified solely for compatibility cross‑mapping and field diagnostic purposes. These high‑precision common rail pressure relief valves represent premium aftermarket fuel system safety components engineered to protect high‑pressure injection systems across global construction, quarry and mining excavator fleets.
