XCMG Excavator Pilot Filter Element (13.5T - 38T Series)

Premium pilot filter element for XCMG 13.5T to 38T excavators. Compatible with XE135D, XE215DA, XE335DK, XE370DK, and more. Ensure precise control and prevent valve spool binding.

XCMG Excavator Pilot Filter | 13.5T-38T Series XE Maintenance Parts

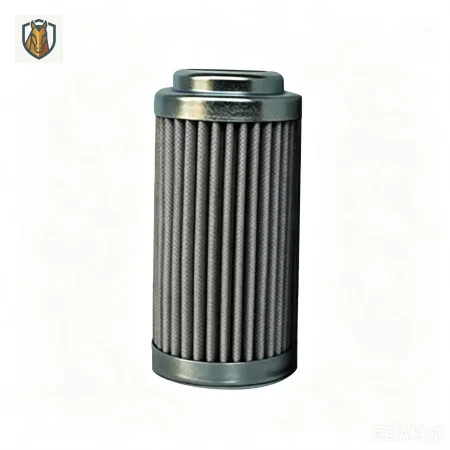

Excavator Pilot Filter Element (13.5T - 38T Series)

High-Efficiency Filtration for Precision Pilot Control Systems

This high-efficiency pilot filter element is engineered for the XCMG XE-series excavators, ranging from 13.5 tons to 38 tons. Serving as a crucial component in the pilot hydraulic circuit, it filters microscopic contaminants from the pilot control fluid. By maintaining clean hydraulic oil, this filter prevents spool sticking, ensures joystick responsiveness, and preserves the precision of the main control valve’s operation. It is an essential maintenance item for sustaining the smooth, factory-standard feel of your XCMG excavators during high-duty cycles.

1. Technical Specifications

ParameterDetail
Component TypePilot Hydraulic Filter Element
Primary FunctionRemoves fine particulate matter from the pilot oil circuit to maintain control system sensitivity
Compatibility (13.5T - 38T)13.5T - 21.5T Models: XE135D, XE150D, XE155DK, XE200D, XE200DA, XE205D, XE205DA, XE215D, XE215DA. 24T - 38T Models: XE240D, XE245DK, XE265D, XE270D, XE270DK, XE305D, XE310DA, XE335DK, XE370D, XE370DK, XE380DK

2. Operational Importance

The pilot circuit controls the "brain" of the excavator’s hydraulic system. Because pilot components are designed with very tight tolerances, even minor sediment can lead to jittery joystick response, delayed action, or internal leakage within the main control valve. Regular replacement of this pilot filter is the most effective way to protect your machine's responsiveness and prevent secondary damage to the main control valve assembly.

3. Maintenance Protocols

  • Replacement Cycle: Recommended every 500 – 1,000 operating hours. In harsh, high-duty or high-dust conditions, proactive inspection is advised.

  • Diagnostic Indicators: If the joystick feels "stiff," "spongy," or unresponsive, inspect the pilot filter for blockages.

  • Installation Advice: Clean the area around the filter housing thoroughly before removal. Ensure the new element is correctly seated to prevent bypass leakage. Always confirm the housing O-ring is in good condition; replace it if damaged to ensure a leak-free seal.

4. Technical Support & Logistics

  • Supplier: Xuzhou Sinoswift Import & Export Co., Ltd.

  • WhatsApp: +86 13701956981

  • Email: [email protected]
